KinIn: Inverse Kinematics Framework

1. Project Description

KinIn is a framework for iterative kinematic analysis of mechanical systems. It evaluates the feasibility of robotic calculations for complex mechanisms, particularly those with more than five degrees of freedom in heavy machinery. The framework uses iterative computation methods rather than traditional analytical techniques to achieve results.

This repository contains the framework files in Structured Text. The MATLAB directory includes a complementary example for better visualization and exploration of the mechanism.

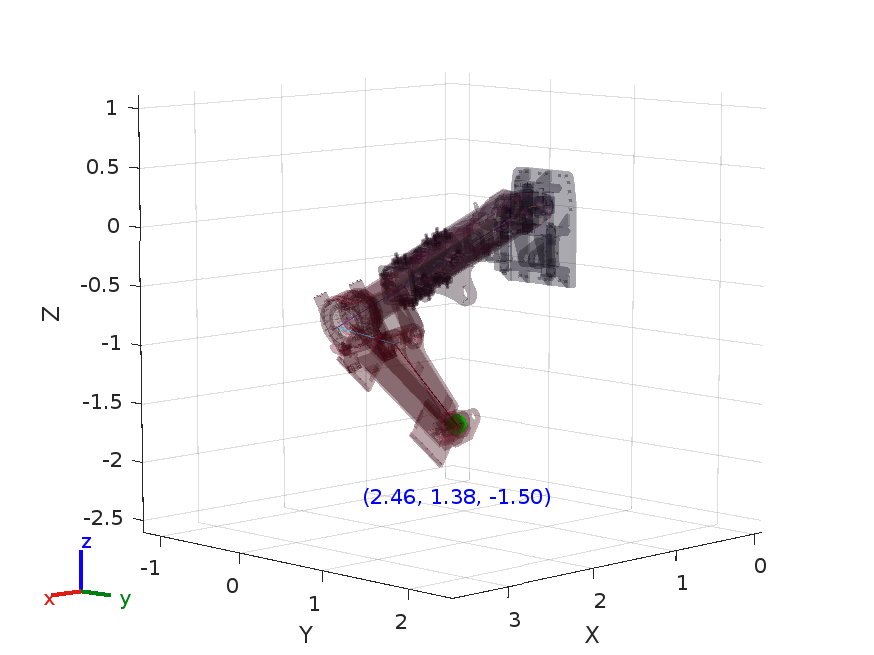

Robot Plot

2. Features

The functions are categorized as follows:

  • Inverse Functions: Inv, LuDecomposition, LuInverse, pInv
  • Linear Algebra: Eye, isValueNegligible, MatMul, Mat_byScalar, norm, Trace
  • Jacobian functions: AdjointTransform, angVelToSkewSymMatrix, BodyJacobian, expToRotAxisAndAngle, Exp_se3_fromTrans, Exp_so3_fromRot, fastInverseTransform, getFwdKinematics_Body, getInvKinematics_Body, RotSO3_fromExpso3, se3ToSpatialVel, so3ToAngularVelocity, spatialVelToSE3Matrix, TransSE3_fromExp_se3, TransSE3_ToRotAndPos

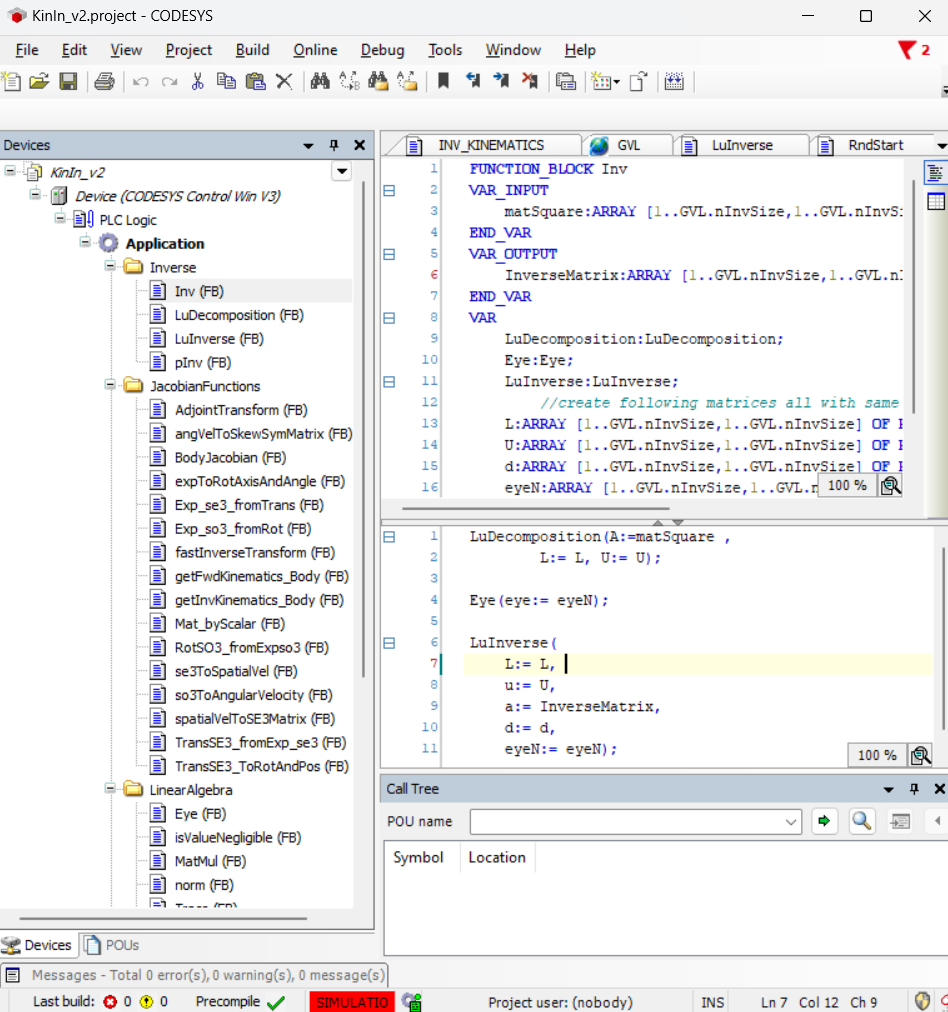

IDE Screenshot

  • The recommended environment is CODESYS V3.5 SP20.
  • For MATLAB, the code requires the Robotics System Toolbox.

4. Installation & Setup

CODESYS:

  • Install CODESYS V3.5 from the official website if not already installed
  • Open the 'KinIn.project' in CODESYS

MATLAB:

  • Install MATLAB or use MATLAB Online
  • Install the Robotics System Toolbox via the addons tab
  • The MATLAB folder contains all necessary files for running the demonstration

5. Usage Guide

CODESYS:

The framework is designed to integrate complex workflows. All files and functions are explicitly provided in this repository. The example in the CODESYS project works as follows:

The PLC_PRG runs all the examples. First it calls the example programs for linear algebra, inverse and jacobian functions. Then it runs the example positions A and B shown in the paper.

MATLAB:

Run 'plot_robot.m' to visualize the results and verify that they match the CODESYS output, providing insight into how the mechanism will behave in real-world applications.

6. Demonstration & Examples

CODESYS:

The framework includes examples for all functions and a real-world mechanism test case.

MATLAB:

The MATLAB folder contains:

  • STL meshes in the 'meshes' folder
  • URDF file for robot description
  • 'import_robot.m' file (the positions can be easily modified by changing the angles)
  • Screenshots of example positions
